Seeded stencil frames¶

tatbot vision stencil generate creates a black-and-white stencil frame around a clear centre for the tattoo. The default design is the coded flower-of-life (--design coded-flower-of-life, scripts/lib/stencil_coded.py). It keeps the flower-of-life hex lattice and codes it:

Beads. A solid round bead sits on every lattice junction, with a clear halo between it and the petal arcs, so it stays an isolated blob after the transfer spreads.
Teardrop bits. Every lattice edge carries both of its petal arcs. A filled teardrop at one end of the petal or the other is that edge’s bit. A washed-off edge reads as an erasure, not as the other bit.
The print ID is the code. The print ID seeds every bit. A deterministic search then makes every local window of edges differ from every other, under all lattice rotations and reflections. The whole frame is the print code, so there is no separate print-ID grid.

A coded tracker decodes the print and its page position from any sufficiently large patch of the frame; stencil bench describes the decoder and scores it on synthetic transfers. The legacy seeded floral frame is still available as --design flower-of-life (below).

Three coded prints¶

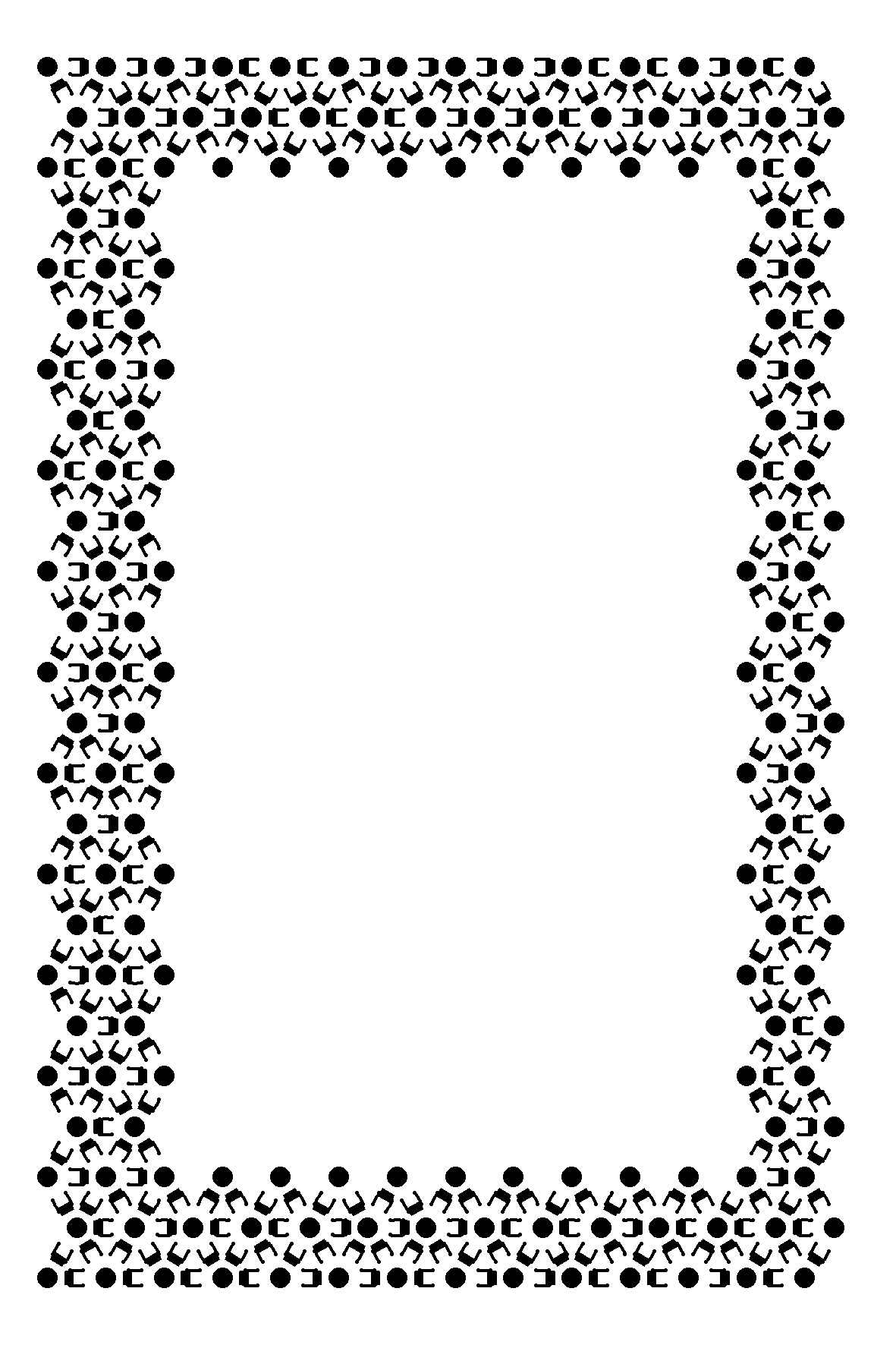

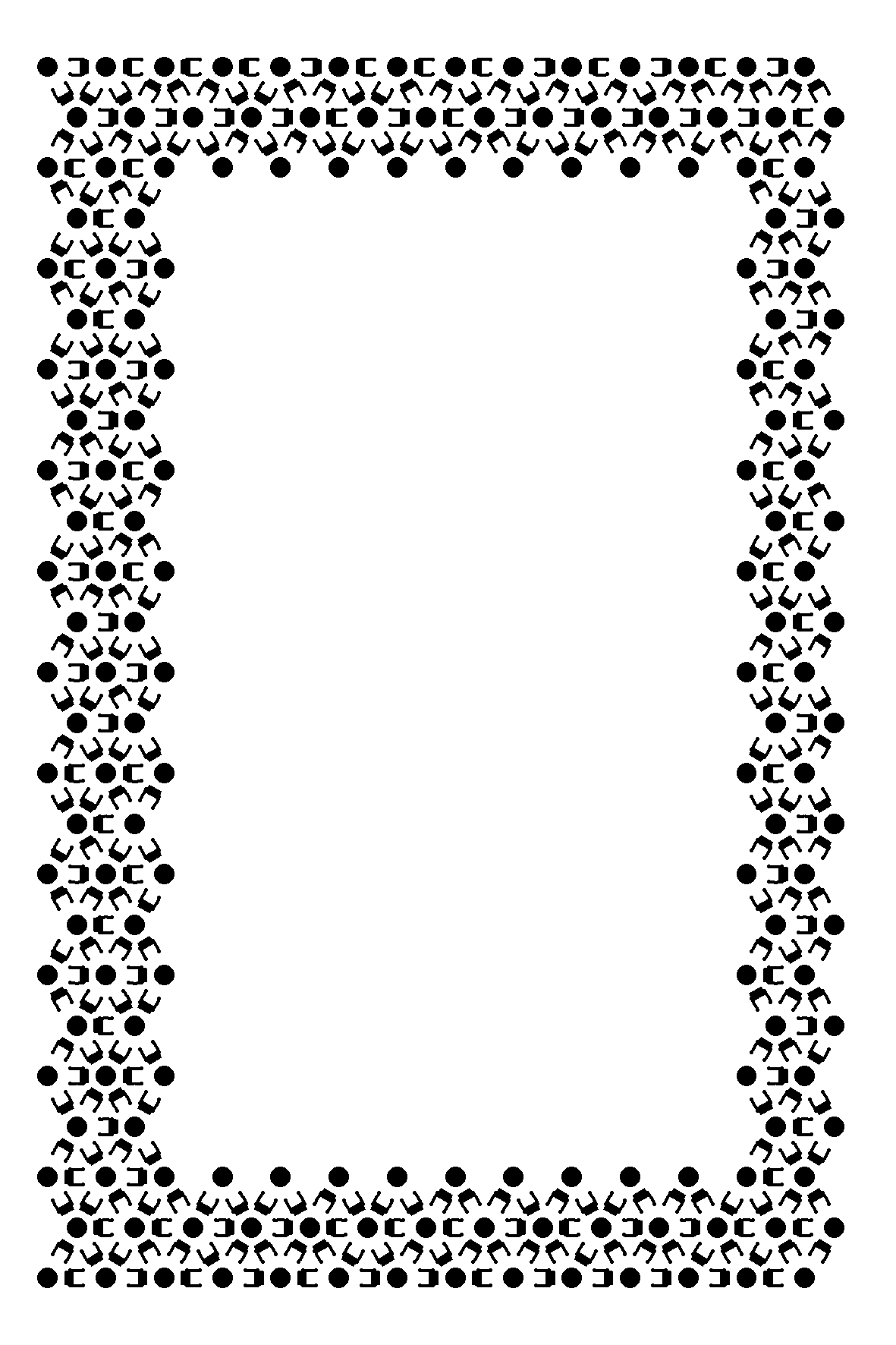

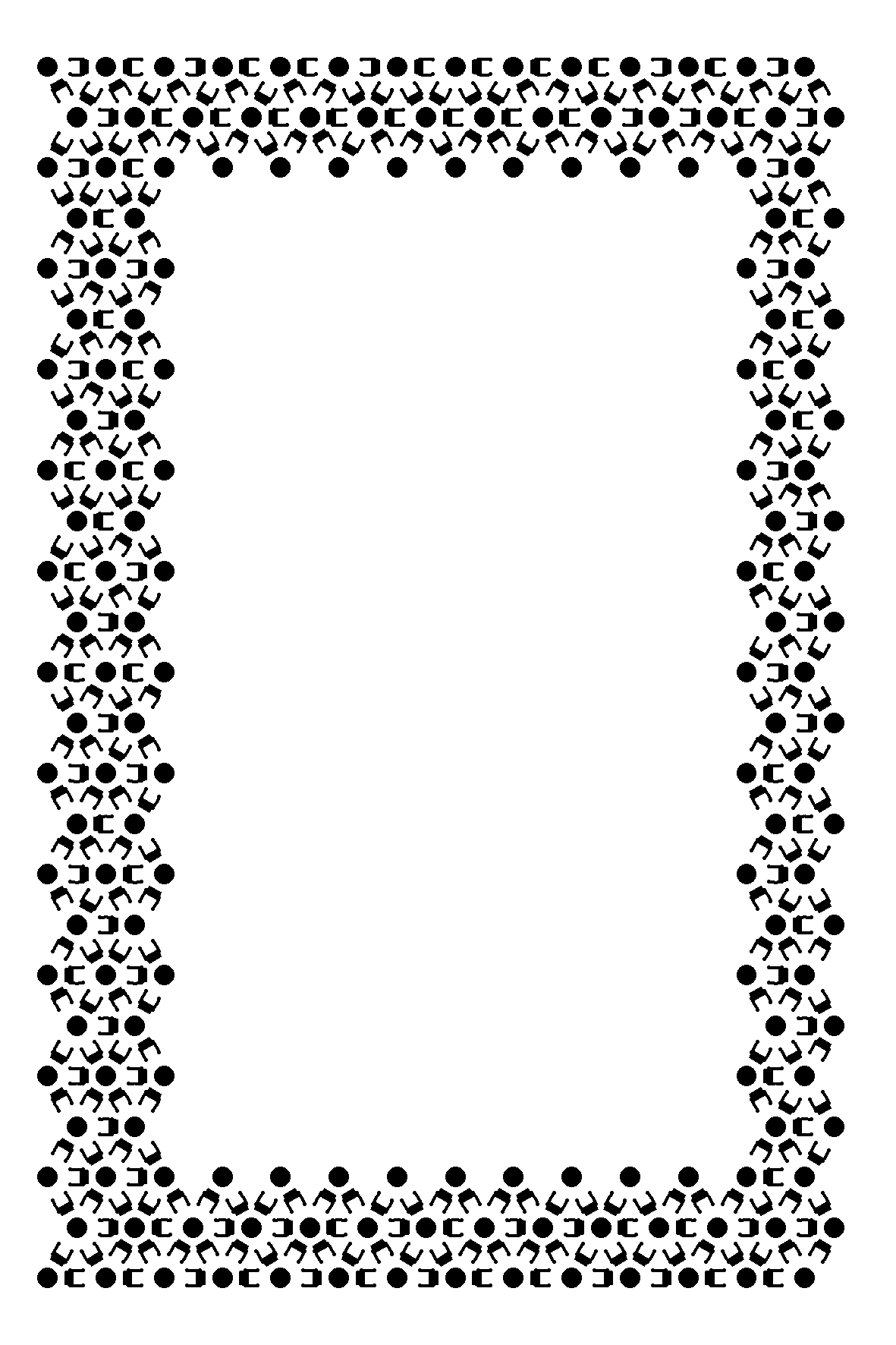

These are the first coded pages printed for testing: seeds 1, 2 and 3 with the default settings. Each has a 100 × 150 mm page, a 5 mm white outer margin, a 14 mm coded border and a nominal 62 × 112 mm clear centre. The PNGs are 1181 × 1772 pixels at 300 DPI, solid black on white.

Seed	Print ID	Phone-app image	Scalable artwork	Settings	Tracking manifest	Code
`1`	`e1904cce0514…`	PNG	SVG	settings.json	tracking.json	coded.json
`2`	`e41ac0293231…`	PNG	SVG	settings.json	tracking.json	coded.json
`3`	`1173b01276fe…`	PNG	SVG	settings.json	tracking.json	coded.json

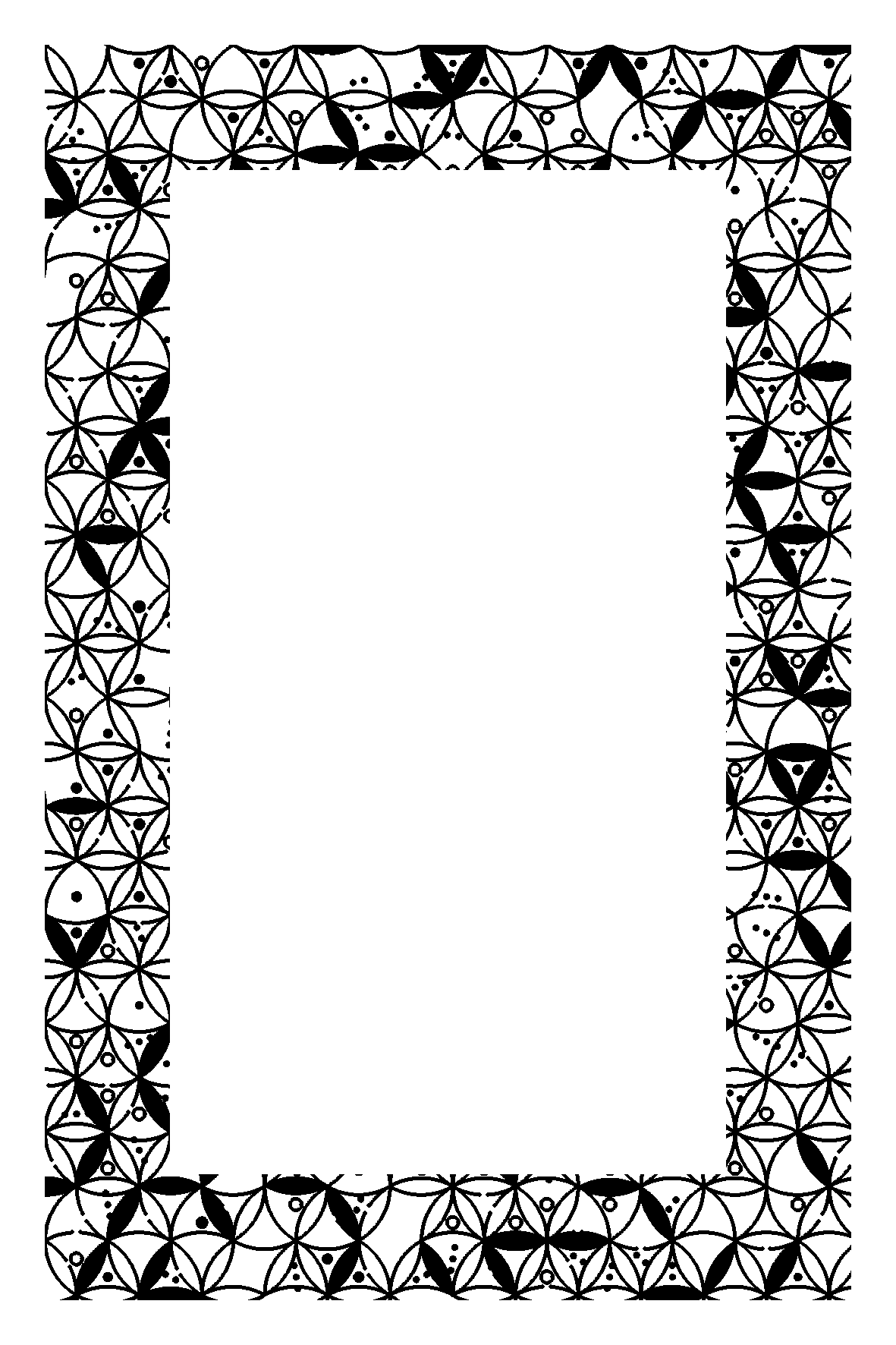

Coded flower-of-life frame, seed 1

Import a PNG into the stencil phone app and set the whole image to 100 × 150 mm, or use the print sheets, which add rulers and a label. Check the printed dimensions, because an app may ignore DPI metadata or crop the white margin. Keep a reference that matches the actual transferred orientation if the app or printer mirrors it. Resizing the page also scales the border, clear centre and stroke widths.

Generate¶

Prerequisites: uv. The CLI runs the generator with Python 3.12, numpy==2.5.3 and Pillow==12.1.1 in a managed environment; the first run may download them. Help, schema, validation and dry-run work from the stdlib-only CLI.

# The coded default design: the seed names the print and derives its print ID.
scripts/tatbot vision stencil generate --seed 1 --output ~/tatbot-logs/stencils/coded-1

# Without --seed a fresh seed is minted, so every ordinary print is distinct.
scripts/tatbot vision stencil generate --output ~/tatbot-logs/stencils/next

# Coded settings.
scripts/tatbot vision stencil generate --seed 101 --set knot_mm=2.4 --set bit=seed \
  --output ~/tatbot-logs/stencils/coded-101-seed-bits

# The legacy floral frame.
scripts/tatbot vision stencil generate --design flower-of-life --seed tatbot-42 \
  --output ~/tatbot-logs/stencils/tatbot-42

The artwork goes directly into --output: stencil.png, stencil.svg, settings.json, tracking.json and, for a coded print, coded.json (the lattice, bits, style and window margins). Existing files with those names are replaced. Print sheets go into print/ (see below); --no-sheets skips them. The command prints one JSON object with the design, seed, output directory, pattern ID, print ID, tracking manifest and sheet manifest.

The same design, seed and settings reproduce the artwork: --seed 1 regenerates the seed-1 example byte for byte. A minted seed is 12 hex digits. It is recorded in settings.json; the sheet label prints the pattern ID, which names the artwork’s tracking.json, so a page can be traced and reprinted.

Coded settings¶

The coded design takes --set key=value, repeatable; a - in a key reads as _. An unknown key is refused. The defaults are the bead-and-teardrop design chosen in the style search; stencil bench describes the style axes and how each design scores.

Key	Default	Meaning
`width_mm`, `height_mm`	`100`, `150`	Whole page dimensions
`margin_mm`	`5`	White margin outside the frame
`frame_mm`	`14`	Coded border width on each side; at least one lattice spacing
`spacing_mm`	`6.5`	Lattice spacing and petal radius; at least 3 mm
`stroke_mm`	`0.3`	Arc line width; at most a sixth of the spacing
`knot_mm`	`2.2`	Bead diameter
`halo_mm`	`1.5`	Clear gap between a bead and the arcs that meet it
`bit`	`teardrop`	`teardrop`, `seed` (a dot on the petal) or `side` (one arc per edge; its bulge side is the bit)
`arcs`	`full`	`full` (both petal arcs) or `single`; follows `bit` unless set
`teardrop_from`, `teardrop_to`	`0.3`, `0.45`	The teardrop’s stretch of the petal, as fractions of the chord from its end
`seed_at`	`0.36`	The seed dot’s position along the chord
`knot`	`disk`	`disk`, `ring` or `dot-ring`
`ornament`, `ornament_rate`	`none`, `0.6`	Uncoded decoration at triangle centres (`none`, `dots` or `rings`) and its rate
`window_radius`	`3`	Lattice steps in a code window, 1-3
`optimize_rounds`	`200`	Rounds of the window-distance search
`dpi`	`300`	PNG resolution; the SVG stays scalable

Clear centre¶

The nominal clear centre is (width − 2 × (margin + frame)) by (height − 2 × (margin + frame)) millimetres, 62 × 112 mm by default. The generator rejects dimensions that leave no centre. Coded beads sit centred on the lattice junctions, so they reach up to about 0.9 mm into the nominal clear centre, unevenly between sides. settings.json records each side’s innermost ink as border_inner_mm ([x0, y0, x1, y1] in page mm, [19.473, 19.812, 82.211, 130.133] for the examples); the lattice layout depends on the page and lattice settings, not on the seed. Narrower borders leave more room for the tattoo. Smaller beads or thinner lines can disappear during transfer; check the print before relying on it for tracking.

Half-skin pages¶

A 185 × 140 mm silicone practice skin cut across its long side gives two 92.5 × 140 mm pieces. An 83 × 127 mm page fits one with its whole print sheet (91 × 137 mm, rulers and label included), so each half of a skin carries its own print:

scripts/tatbot vision stencil generate --seed <seed> --set width_mm=83 --set height_mm=127 \
  --output ~/tatbot-logs/stencils/<name>

Its clear centre is 45 × 89 mm and its border is 19.6–19.9 mm deep on every side. Its code windows differ by at least 8 bits, against 7 on the 100 × 150 mm page. Choose a page size by the lattice. Rows are 5.63 mm apart, and one phase serves both bands, so some sizes leave a band a row short: 84 × 128 mm has two rows along its top and 285 coded edges against 310. Check coded_edges and border_inner_mm in settings.json before printing a new size.

Generation, print sheets, the stencil observer and the drawing stack take any page size. Install the print’s reference (vision stencil reference --settings <artwork>/settings.json --install, which also installs the settings.json) on the camera node and name it when the stack starts, by the hex digits its sheet prints:

scripts/tatbot ros up --hardware real --estop udp --page stencil --arms right --probe --pattern 71f05c95e635
scripts/tatbot ros compile artwork.json --stencil ~/tatbot-logs/stencils/<name> -o prepared

The stack reads the page’s size, clear centre and inner border edges from the installed print; --stencil checks the design against the same print when it is prepared, and a draw whose lines leave that clear centre is refused before the arm moves.

Legacy flower-of-life¶

--design flower-of-life is the earlier seeded floral frame (scripts/lib/stencil_frame.py). Seeded gaps, filled petals, rings and dot clusters vary the intersecting-circle border from place to place. The floral artwork is a texture, not a code. Ordinary generation mints a fresh 96-bit print ID and co-prints its code in the top frame. The design takes its own options, and the coded design refuses them; --set is refused with this design.

Option	Default	Meaning
`--seed`	`tatbot-42`	Any text or number; selects the border variations
`--width-mm`, `--height-mm`	`100`, `150`	Whole page dimensions
`--margin-mm`	`5`	White margin outside the frame
`--frame-mm`	`14`	Width of the patterned border on each side
`--spacing-mm`	`7`	Circle radius and lattice spacing
`--stroke-mm`	`0.45`	Line width before raster rounding
`--gap-rate`	`0.22`	Fraction of circle sectors omitted
`--fill-rate`	`0.14`	Probability of filling a candidate petal
`--dpi`	`300`	PNG resolution; SVG remains scalable
`--instance-id`	fresh random ID	Explicit 24-digit lowercase hex ID for a reproducible printed file
`--unmarked`	off	Legacy artwork without a physical print code; identity remains unqualified

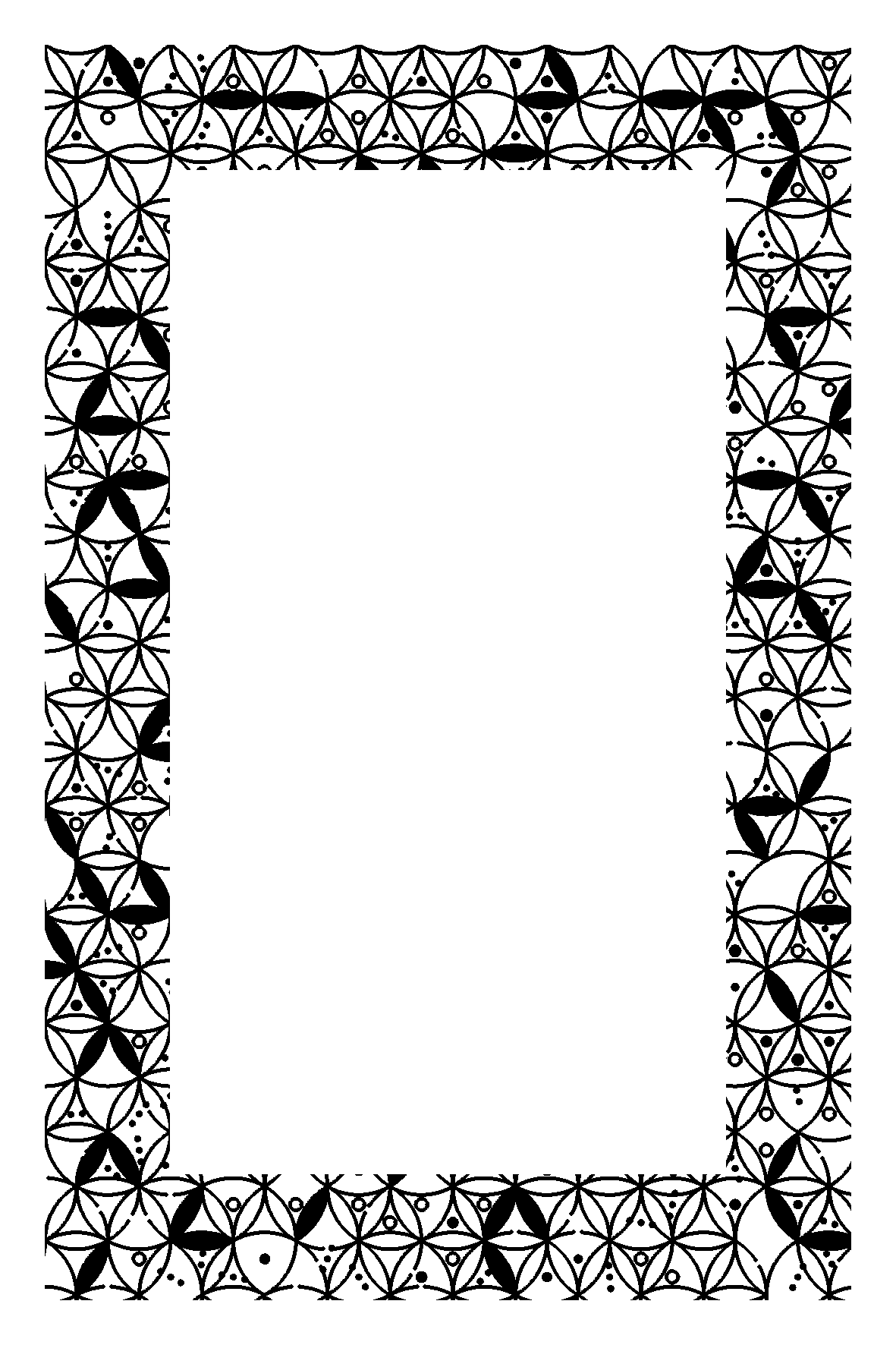

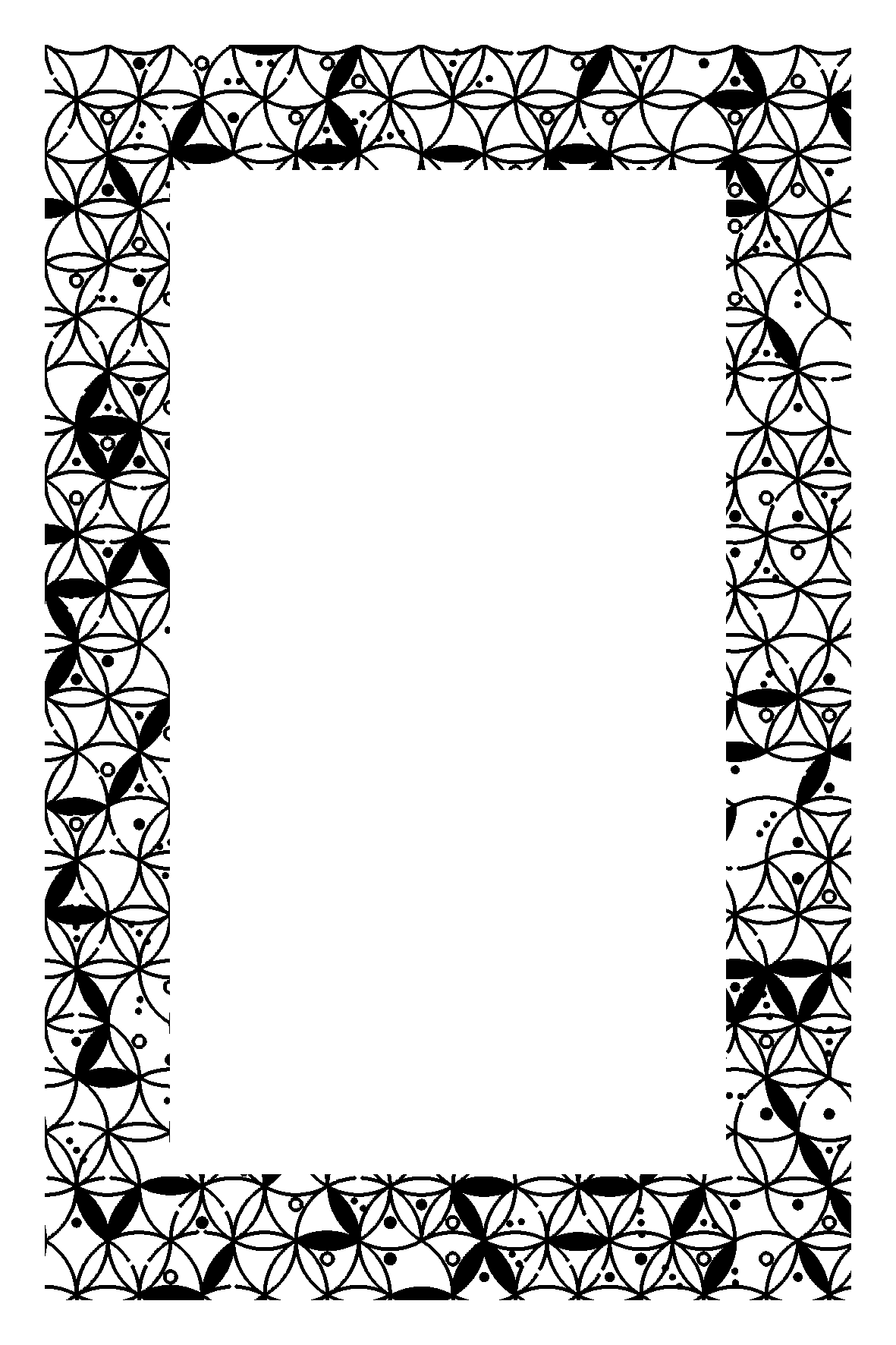

The three checked-in legacy examples predate the instance code. Add --unmarked to reproduce their PNG and SVG artwork; those prints cannot be uniquely identified by the observer.

Seed	Phone-app image	Scalable artwork	Settings and hashes
`tatbot-42`	PNG	SVG	JSON
`tatbot-43`	PNG	SVG	JSON
`tatbot-44`	PNG	SVG	JSON

scripts/tatbot vision stencil generate --design flower-of-life --seed tatbot-43 --unmarked \
  --output ~/tatbot-logs/stencils/tatbot-43

Print sheets: rulers and label¶

A print sheet wraps a stencil page with:

a millimetre ruler down the left edge, reading 0 at the page’s top edge and running its full height, and a millimetre ruler along the bottom edge, reading 0 at its left edge and running its full width, for checking the scale of the print and of its transfer on skin both ways;
one small line centred over the top edge: the pattern ID’s first 12 hex digits and the page size, such as pattern 644a8a0efdf7 83 x 127 mm.

All three sit outside the stencil page, in strips 8 mm (left), 4 mm (top) and 6 mm (bottom) wide, so the page coordinates in tracking.json are unchanged; print/sheet.json records the page’s offset on the sheet.

vision stencil generate writes the sheets into <output>/print/, at 300 DPI. tatbot vision stencil print writes them for existing artwork (--artwork, with --dpi for another resolution), or with --seed first generates a coded stencil into <output>/artwork/ (the default design, or --set key=value settings):

tatbot vision stencil generate --seed 101 --output ~/tatbot-logs/stencils/coded-101   # artwork and print/
tatbot vision stencil print --seed 101 --output ~/tatbot-logs/stencils/coded-101      # artwork/ and print/
tatbot vision stencil print --artwork docs/assets/stencil-coded/1 --output /tmp/coded-1-print

In print/:

stencil-app.png: black and white, 300 DPI, for a thermal stencil printer’s phone app. Set the whole image to sheet_mm in sheet.json (108 × 160 mm for a 100 × 150 mm page, 91 × 137 mm for 83 × 127), and do not crop the white edges.
paper-a4.pdf and paper-letter.pdf: the sheet at 100 %, centred on a paper page. Print at actual size, with no fit-to-page.
paper-fit.pdf (with --fit-area WxH, on either command): the page is exactly a printer’s printable area. Some driverless (IPP Everywhere) printers ignore a no-scaling request and stretch whatever page they get, up or down, to fill their printable area. Given a page of exactly that area, the stretch is 1. Example: a Canon TR4700 reports margins of 6.4 / 6.3 mm left / right and 5 mm top / bottom on Letter, so the area is --fit-area 203.2x269.4. An area smaller than the sheet is refused.
sheet.svg: the same sheet in millimetres.
sheet.json: geometry, source hashes and print instructions.

After printing, check both rulers against a real ruler (150 mm down the side and 100 mm along the bottom for the default page). The rulers and label transfer onto skin with the stencil; in a photo they give the scale, and mirrored label text shows a mirrored transfer.

Reproducibility and tracking scope¶

The coded design is scripts/lib/stencil_coded.py. Its bits come from a SHA-256 stream seeded by the print ID (sha256("tatbot-coded-print:<seed>"), 24 hex digits), then a deterministic search raises the worst window’s distance; the same seed and settings reproduce the artwork, its coded.json and its pattern ID. The code is the print’s identity: two prints with different seeds differ in their bits everywhere on the frame, and a decode names the print. Reprinting one seed gives identical codes that cannot be told apart, as for any copied file. settings.json records the generator and Pillow versions, the settings, the window margins the code achieved, and SHA-256 hashes of the PNG, SVG and coded.json.

The legacy design is scripts/lib/stencil_frame.py. A SHA-256 counter stream supplies all floral-artwork choices. A fresh random print ID makes each ordinary output file distinct; pass --instance-id to reproduce the same marked file, or --unmarked for a legacy example. There is no image model or network generation. Keep the code and settings alongside the image. The settings record generator and Pillow versions, physical and pixel dimensions, coverage, and SHA-256 hashes of the PNG and SVG. PNG file bytes can vary with the rendering environment even when decoded pixels agree.

The legacy circle scaffold is periodic; arc omissions and decorations vary across it. That floral artwork is not a fiducial with guaranteed unique local descriptors. The top-frame grid carries a 96-bit print ID and CRC; it is read only after the page homography is found, not used as a robot-frame registration marker. It does not register itself in the fiducial inventory, establish metric scale from the seed alone, or configure Tatbot’s surface mapper. The blank center preserves the view of the tattoo but adds no texture there for measuring local deformation. Validate feature matching on the actual transferred surface before treating the frame as tracking evidence.

Reference acquisition and image tracking¶

The generator also writes tracking.json. Existing artwork can acquire this manifest without being regenerated:

scripts/tatbot vision stencil reference --settings stencil/settings.json

--install also copies the manifest, its artwork and the generator’s settings.json (the drawing stack’s page geometry) under this node’s log root (stencils/references/<pattern_id>/), where the fleet stencil observer (stencild, see vision) reads its references: it rescans them by mtime, so an installed print is observed on the next turn and no service restarts. The image and a coded print’s coded.json land before the manifest, each atomically, so the observer never pairs a manifest with files it does not describe.

A coded print’s manifest binds its code: a coded block names coded.json with its SHA-256, scheme and print ID, and the print ID is the reference’s physical_instance_id. A coded reference loads only beside the coded.json it was exported with; a changed, missing or foreign code is refused, and a coded print is never tracked by its appearance. A coded manifest exported before the code was bound is refused with the command that re-exports it: vision stencil reference --settings <artwork>/settings.json binds the coded.json beside the artwork when its print ID, geometry and lattice size match the settings.

The manifest binds the artwork-only pattern identity, exact marked raster hash, expected print ID and grid geometry when marked, requested print dimensions, and page UV coordinates. UV starts at the whole page’s top left; u increases rightward and v downward. Pixel centers map as ((x + 0.5) / width, (y + 0.5) / height). Print dimensions are nominal until measured. A pattern ID identifies floral artwork; two marked files can have the same pattern ID but different reference and print IDs. Reprinting or copying one marked file gives identical codes and remains indistinguishable.

A coded print is found by decoding it (stencil_coded_live.py, decoder in stencil bench). The decode names the print and gives each junction’s page UV and pixel; those correspondences pass the same homography, coverage and page gates as a SIFT acquisition, with a reprojection gate scaled to the decoded lattice, and seed the same Lucas–Kanade track. On every later frame the tracker re-reads the print’s own bits between the tracked junctions and compares them with the code: a lattice slip, flow onto another print, or unreadable bits read as lost. A rejected or ambiguous decode is lost, never a pose. In replay, --region X0,Y0,X1,Y1 bounds the decode to a pixel box of a large frame; small frames are searched whole.

The image observer searches legacy references using SIFT at three scales in both transfer orientations. The --all-references scene mode uses seven scales (100–640 pixel long edges) and a larger image feature budget to acquire smaller stencils in a shared view. Images above 2.5 million pixels are halved until they fit that acquisition budget, reducing competition from fine background texture. Features map back to native pixel centers before matching geometry, optical flow and depth lookup; pixel-error gates are unchanged. Ratio-filtered descriptor matches must pass distinct-location, RANSAC, coverage, and nondegenerate page checks. Close competing pattern scores produce an ambiguous result. Acquired correspondences seed the existing forward/backward Lucas–Kanade tracker, with reference verification every 1.5 seconds and new searches at most every 250 ms.

scripts/tatbot vision stencil replay \
  --reference docs/assets/stencil-frames/tatbot-43/tracking.json \
  --instance skin-a --frames frames.jsonl \
  --output ~/tatbot-logs/stencil-replay/example

# Run on the camera owner with its existing frame socket and exact RGB name.
scripts/tatbot vision stencil observe \
  --reference docs/assets/stencil-frames/tatbot-43/tracking.json \
  --instance skin-a --socket /tmp/visiond.sock --sensor wrist_color \
  --duration-s 30 --max-frames 300 \
  --output ~/tatbot-logs/stencil-observe/example

Repeat --reference to include competing patterns, or add --all-references to track one independent instance of each distinct pattern:

scripts/tatbot vision stencil replay --all-references --surface \
  --reference stencil-a/tracking.json --reference stencil-b/tracking.json \
  --instance session-a --frames frames.jsonl \
  --output ~/tatbot-logs/stencil-replay/two-stencils

In scene mode, spatially disjoint matches can both succeed. Competing matches whose observed feature hulls substantially overlap are rejected or marked ambiguous according to their support. Each pattern has independent loss, reference verification, and recovery. Its instance ID is the supplied namespace plus the full pattern ID. Reference search is shared across trackers that need it on the same frame. One reference per artwork pattern is still supported. A different, readable print code on the same artwork is refused even if its replacement was not jointly visible with the original. Simultaneous copies of one pattern, or two copies printed from the same marked file, remain outside that guarantee.

Output must be a new directory outside the checkout. Dependencies are pinned by the CLI; first use may download them. Live observation subscribes to an existing frame owner and does not open a camera backend. Replay accepts a native, hash-checked visiond sensor index through --recording frames.jsonl, or --frames with JSONL rows:

{"image":"frame.png","timestamp_ns":1000000000,"source_id":"wrist-session-a"}

Generic image paths are relative to the manifest or absolute. An optional depth_m path names an aligned floating-point NPY plane in meters. Timestamps must be from one normalized clock domain; preserve capture gaps. Source/profile changes and gaps over 500 ms discard optical-flow continuity and require new reference acquisition. Non-increasing timestamps withhold coordinates.

Each observation distinguishes image correspondence from geometry validity. On loss it emits no homography or landmarks. Reacquisition uses the original reference coordinates and cannot silently change the initially acquired pattern. The --instance label is operator supplied. For marked references, each current image must also decode the expected code; missing, low-resolution, ambiguous or different codes withhold image tracking and measured pose. Old unmarked references can still track artwork but explicitly report physical_instance_identity_verified: false. Neither the mark nor this observer output alone authorizes motion. Without --all-references, the original single-instance behavior remains: the first acquired pattern stays locked through recovery.

observations.jsonl, report.json, retained references, and a final overlay record the result. Processing percentiles exclude capture, transport, and reference-bank initialization. Cold acquisition costs more than optical flow; measure both on the intended camera owner. Live frames use a bounded latest-only queue. Reported capture age does not certify clock agreement or control freshness. Optional --truth labels are read only after tracking; one label per observation contains visible, pattern_id, and optionally homography_uv_to_image for pixel-error scoring. Evaluation reports false accepts, missed frames, and return recovery delays. Scene labels contain a stencils list with one label for every supplied pattern on each frame. Synthetic tests cannot establish hardware surface accuracy.

Live prints¶

The fleet stencil observer (stencild, see vision) watches every installed print continuously: install a reference with vision stencil reference --settings … --install and its pose is published as tatbot.target-pose/1 on tatbot/tracking/target/<pattern_id> on the next turn, with the support it rests on; the fleet Rerun viewer draws each print’s outline at world/tracking/target/<pattern_id>, a covered print clears its outline while its status stays. No robot workflow and no separate preview process is needed, and nothing the observer publishes authorizes motion. For a physical check, move one stencil, cover its patterned border, then uncover it, and watch the outline follow, clear and return.

A coded print is decoded on each registered arm’s drawing pad (a square 250 mm either side of the arm’s pad pivot) and around pages a camera already tracks, in a background process; put it on the pad. On the camera node a first decode takes up to about two minutes per camera. Its target’s support carries the decoded print ID as a verified physical_instance_id in every measured sample, and a refusal (coded_bits_disagree, an ambiguous decode) by name in support.reason.

Optional camera-local surface candidates¶

--surface adds a separate surface result to each stencil observation. candidate_valid describes a supported fit; geometry_valid and motion_authority remain false. These estimates are diagnostic evidence only. The observer does not publish material poses to trackd, accumulate a map, fuse cameras, or authorize motion.

For RGB-D, the existing owner socket supplies paired color/depth frames and active intrinsics. Generic replay must retain the native frame-set header and explicit sensor name alongside the image and depth:

{"image":"frame.png","depth_m":"depth-m.npy","metadata":"header.json","sensor":"wrist_color","timestamp_ns":1000000000,"source_id":"capture-a"}

The header is the visiond frame-set object with a frames list containing each frame’s metadata. Depth must already be aligned to the named color stream. Frame numbers, capture epochs, capture timestamp, dimensions, and alignment are checked before deprojection. RealSense distortion follows the SDK’s deprojection convention without the SDK wheel. Disagreement between aligned color and depth intrinsics is recorded as a calibration warning, not silently corrected. Image, depth, header, and optional camera model hashes are retained in replay provenance. A single-sensor --recording index supplies image tracking only; paired RGB-D replay uses --frames.

At least 12 valid measured anchors spanning 10% of page UV are needed. An affine plane is compared with a quadratic UV surface when at least 24 anchors support the latter. The quadratic must improve the approximate leave-one-out residual; inconsistent fits are withheld. A center pose is emitted only when the observed anchor hull encloses UV (0.5, 0.5). This is a fitted center, not an independently observed material point. Its X axis follows increasing u, Y is orthogonalized increasing v, and Z is their cross product. The origin and axes are in the camera’s optical frame, with translations in meters.

Measured mesh files under surfaces/ contain camera-space vertices, triangles, image pixels, and reference_uv_hint. Faces require valid depth across their full image cells; holes are not filled. The blank center can supply depth shape but no verified dense material identity. Its UV values remain homography hints. Strong curvature can also prevent the planar image matcher from acquiring the border, even though the surface fitter supports a quadratic patch.

RGB-only replay can instead supply a camera_model JSON path. It must contain width, height, fx, fy, ppx, ppy, distortion_model (None or BrownConrady), and five distortion_coefficients, all for the actual image resolution. This computes planar IPPE pose candidates from the reference’s nominal page dimensions. Both valid branches and an ambiguity flag are retained. The result explicitly reports print_scale_measured and surface_shape_measured; it does not measure curvature. A wrong print size directly scales the inferred camera distance. Do not treat this fallback as a depth measurement.

The 6×6 pose covariance uses translation in camera XYZ meters and a local rotation vector in stencil XYZ radians. RGB-D uses a spatial-block bootstrap of measured anchors; RGB uses a correspondence bootstrap conditional on print size and camera model. Both are uncalibrated conditional estimates: low scatter does not bound systematic depth, intrinsics, print-scale, correspondence, or unobserved deformation errors. Neither qualifies an absolute accuracy claim or provides the calibrated cross-camera uncertainty needed for fusion.

Rerun display¶

Add --rerun to replay or observe to save replay.rrd inside the output directory. --connect rerun+http://HOST:9876/proxy streams to the existing fleet viewer; both options can be used together. --recording-id selects a recording for this camera, defaulting to the run ID. Use a separate recording per camera: the geometry stays in optical coordinates and has no world extrinsic transform.

The fixed Calibration tab already displays the output:

scripts/tatbot vision stencil replay --surface --rerun \
  --connect rerun+http://HOST:9876/proxy --recording-id stencil-camera-a \
  --reference stencil/tracking.json --instance skin-a \
  --frames frames.jsonl --output ~/tatbot-logs/stencil-replay/view-a

calibration/stencil_camera/raw_depth is a colored, measured depth cloud of the scene, including when stencil acquisition fails. Accepted stencil meshes, measured anchors, candidate center axes, and quality metadata appear under calibration/stencil_camera/stencils. A raw cloud is not a registered skin mesh. Unsupported surfaces are cleared on the next display frame, including their previous center and axes. RGB-only nominal poses have axes but no measured mesh.

The adapter uses tatbot_rerun.start, preserves original capture_time, caps display updates at 5 Hz and raw clouds at 20,000 points, and never starts a viewer or sends its own blueprint. Live display also has a wall-clock rate cap. Display I/O is excluded from the observer’s reported processing latency; it can reduce this advisory CLI’s throughput but does not block the existing capture owner. The capture time, matching status, calibration warnings, and unqualified geometry status remain visible. Selecting a recording does not make old captures live.
